Users now can add a customized catalog of charging stations, enabling them to handle manufacturers that are not originally included in Caneco BT. The processing of these custom charging stations in Caneco BT remains consistent.

Possibility to print EVSE terminal nomenclature using the "Bill of materials for terminal devices" folio

Possibility to export in ASCII, CSV, Excel, XLM…

• Possibility to export all or a part of the project
• Adding of multiple attributes

When choosing "Equipot" to protect against Indirect contact, the PE cross section is determined accordingly to standard tables.

Even in the presence of Equipot, circuits without PE are no longer compliant unless the user provides justification.

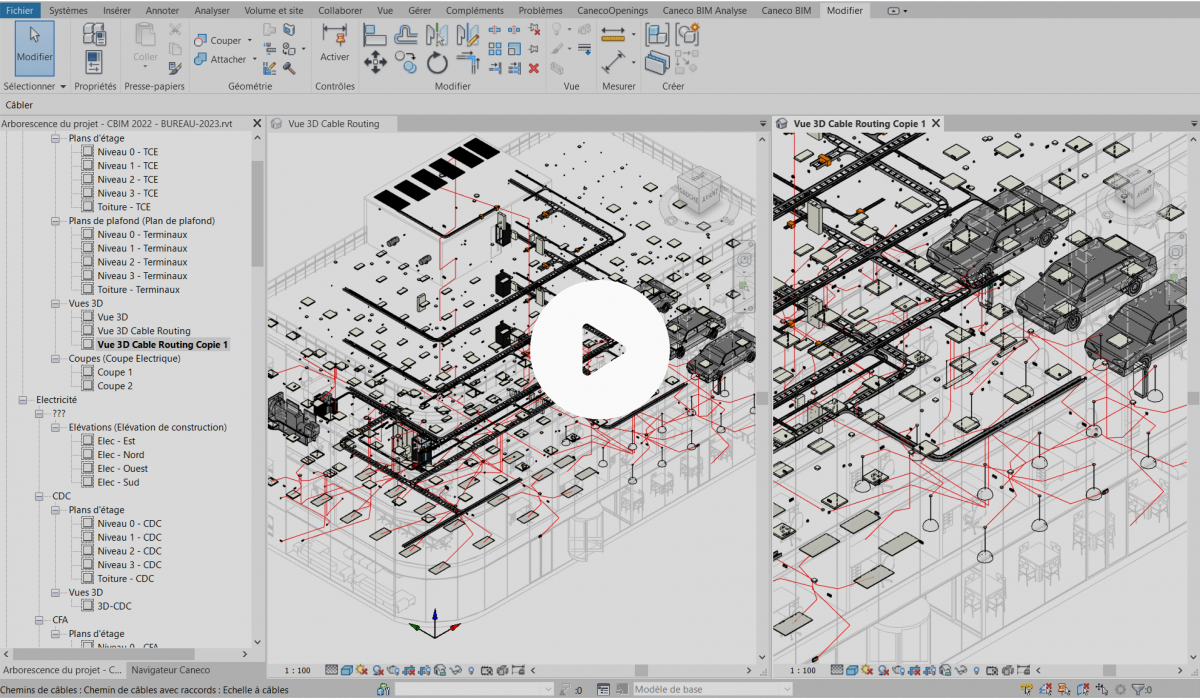

Caneco BIM 2023 is integrated into the new BIMelec solution and is a complement to the 2023 versions of Caneco Implantation and Caneco BT.

Caneco BIM 2023 is compatible with the 2021, 2022, 2023, and 2024 versions of Revit®.

• Suitable for complex models with multiple distributions and cable path systems
• Up to 90% faster processing time
• Example on a project with 10,000 cables and 10,000 cable trays: Reduction of processing time from 30 minutes to 3 minutes i.e. 90% time reduction

New export in CSV format of the following elements:
• Terminal devices
• Cable trays
• Distributions
• Circuits
• Rooms
• Cables

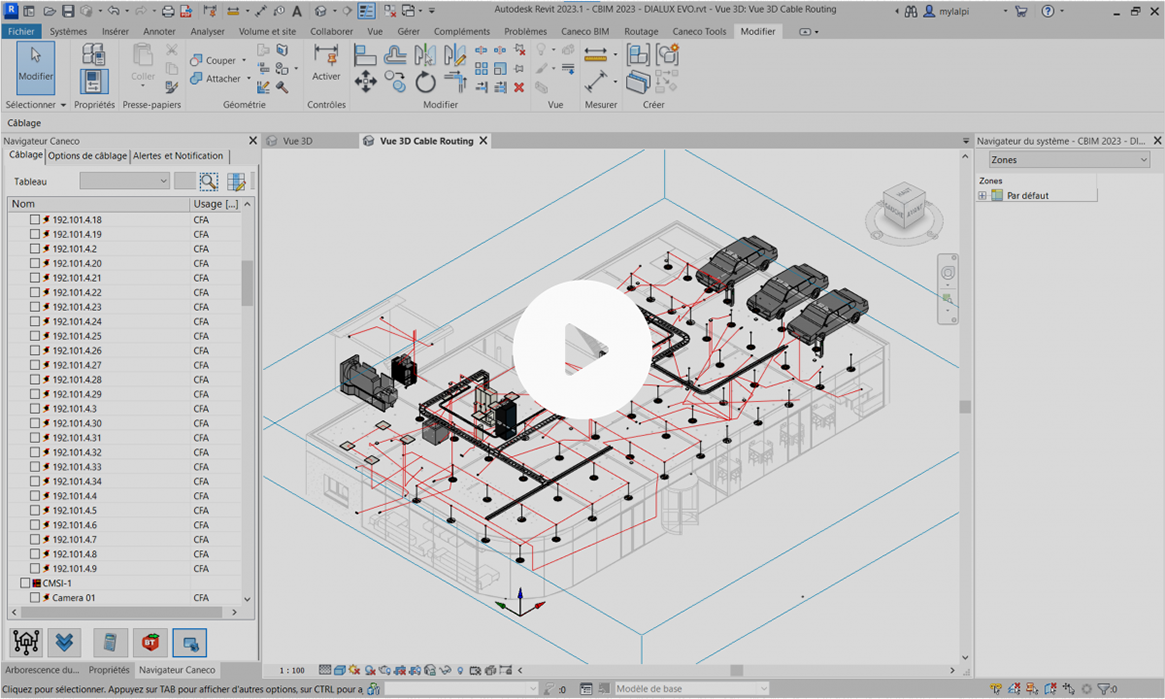

Bi-directional dialogue with DIALux Evo:

• Room exchange
• Illuminance calculation
• Creation of luminaires (*)
• Parameter sets shared with important concepts from DIALux Evo (*)
• Installation of new luminaires, updating and replacement during iterative calculations (*)

*Requires the export option to CSV format in DIALux Evo

Improved multi-source processing:

• Caneco BIM allows you to define up to 6 sources in parallel without the need to connect them
• These sources are supported by Caneco BT with their operating mode

Example:

• 3 sources installed, operating mode min 1 and max 2
• The Caneco BT sizing takes this parameter into account

New functions for routing cables in paths and terminal devices wiring in a circuit:
• Creation of cable routing points in paths
• Creation of cable output point from a path

Complete redesign of the Caneco BIM and Caneco Implantation application launcher:

• Creation of a launching profile for a product
• Licence configuration test
• Support for Caneco BIM 2021, 2022, 2023 and 2024
• Update notification

Improved general ergonomics by integrating the new functions of 2023 version:

• Caneco BIM: Grouping the Wire and CBIM Data functions in Calculation and Display
• Caneco Tools: Grouping of Caneco Analysis, Caneco Openings and Database
• Path: Old Size ribbon renamed
• Wiring: Old Wire ribbon, also includes the new wiring functions
• Routing: New ribbon

• General improvements in performance and minor corrections.
• Corrected path altitudes for the cables in the supply circuits of the distributions.
• Added technical documentation for starting a new project.
• Increased number of characters for circuit marks to 25 characters.
• Added function to delete a circuit in the Caneco browser

Caneco Implantation 2023 is integrated into the new BIMelec solution and is a complement to the 2023 versions of Caneco BIM and Caneco BT.

• Caneco Implantation 2023 is compatible with the Autodesk AutoCAD® 2021, 2022, 2023, and 2024 (64 bit only) and AutoCAD® MEP 2021, 2022, 2023, and 2024 (64 bit only) graphics platforms

• As an option, Caneco Implantation 2023 can include the 2023 version of AutoCAD® OEM (64 bit only) available in 4 languages (English, French, German and Spanish)

• Suitable for complex models with multiple distributions and cable path systems
• Up to 90% faster processing time
• Example on a project with 10,000 cables and 10,000 cable trays: Reduction of processing time from 30 minutes to 3 minutes i.e. 90% time reduction

Redesign of the AutoCAD profile configurator for Caneco Implementation:

• Operating mode in silent setup/installation
• On-the-fly reading and updating of AutoCAD profiles
• Taken into account of Caneco Implementation versions 2021 to 2024

Complete redesign of the Caneco Implantation and Caneco BIM application launcher:

• Creation of a launching profile for products
• Licence configuration test
• Support for Caneco Implantation Implantation 2021, 2022, 2023, and 2024
• Update notification

Improved palette of terminal devices:
• Integration of a property selection system for labels from the properties palette

• Displaying of custom property sets in the Caneco Properties palette
• Creation of a new circuit with a protection mark already existing in another circuit
• Creation of hatches for cable trays as Caneco or AutoCAD objects

Considering the capacitive current IC in the calculation of the phase-to-earth fault IK1.

When choosing a CT or VT out of catalogue, a list of normalized values is proposed for each assigned characteristic (Ur, IP/is, Ith, precision power, ALF…)

• Addition of a generic relay with max phase current (50/51) and max zero sequence (50N/51N, 50G/51G) functions.
• The relay has three thresholds with wide adjustment ranges and very fine pitches.
• The first threshold may be of DT or IDMT type (13 standardized curves).

Addition of a list of standardized voltages (according to NF C13-200 standard) for network feeders and switchboards.

• Add a box in the "network feeder" window to identify public distribution substations.
• Add a box for IB (base current) for connection type links such as cables.
• Improved setting of general protection (in addition to the 0.8*IK2min, apply the 8*IB rule).

Fuse:
• Schneider Electric 2020

Relays:
• ABB : REM 615, RET 615 et REF 620 ranges.
